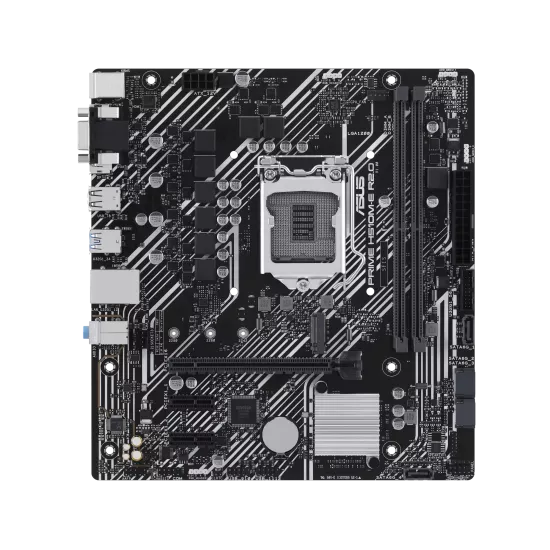

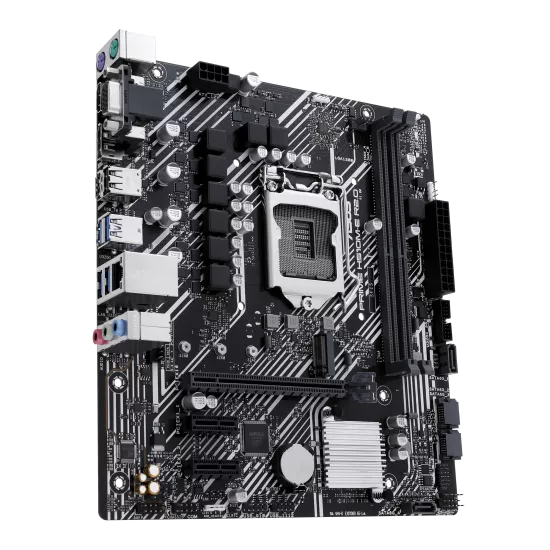

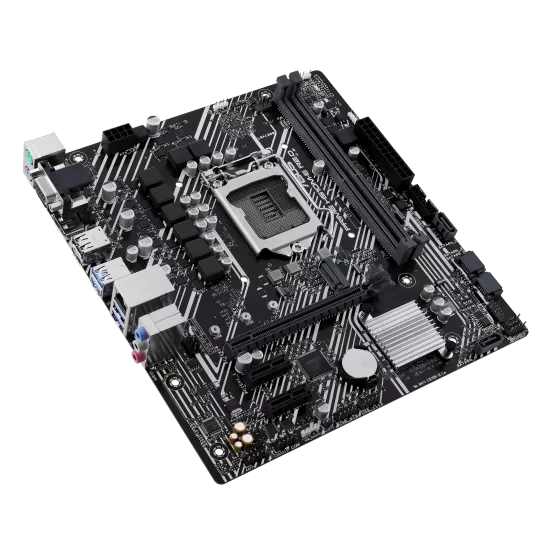

Asus Prime H510M E R2.0 DDR4 Motherboard For Intel 10th | 11th Gen
Sold by:
SMART TECH SOLUTION
5 products sold in last 9 hours
Selling fast! Over 17 people have in their cart
- Model:PRIME H510M-E R2.0
- Warranty:3 Years from ASUS Service Center
- Service Center:ASUS
- Product URL:View Product
28 people are viewing this right now
- Estimated Delivery : Up to 4-5 business days
- Free Shipping
- Warranty as specified by seller
- 3 days returns. Buyer pays for return shipping.
| Specification | Details |
|---|---|
| Model | PRIME H510M-E R2.0 |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H470 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported configurations vary depending on CPU type. Visit ASUS Support for details. |
| Graphics | 1 x DisplayPort 1.4** 1 x VGA 1 x HDMI™ 2.1*** ** DisplayPort and HDMI specifications vary based on CPU type. |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 slot (based on CPU generation) 2 x PCIe 3.0 x1 slots |
| Storage | 1 x M.2 slot (PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB: 4 x USB 3.2 Gen 1, 2 x USB 2.0 Front USB: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module is required for 7.1 surround sound. |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1, 2 x USB 2.0 1 x DisplayPort, 1 x VGA, 1 x HDMI™, 1 x Realtek 1Gb Ethernet 3 x Audio jacks, 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers Additional connectors include AURA RGB headers, TPM header, and more. |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solution AURA Sync RGB and Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive Software: Armoury Crate, AI Suite 3, Fan Xpert, and more. Norton 360 Deluxe (60 Days Free Trial), WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |

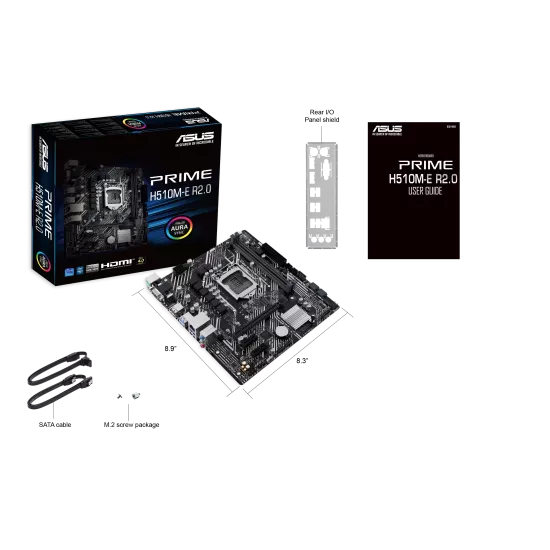

| Accessories | 2 x SATA cables, 1 x I/O Shield, 1 x M.2 SSD screw package, User guide |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX (8.9 x 8.3 inches / 22.6 x 21.1 cm) |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 22 × 5.5 × 27 cm |
